Digitizer and Digital Blueprint Dimension Takeoff Systems

We offer SOFTWARE and HARDWARE for time saving solutions for the tedious, complex and time consuming takeoff / estimate process.

Esti-Mate Software will interface with all of the below precision software and hardware products.

3-2-1 . . . Takeoff!
Area and Volume Digitizing Software for the
Calculated Industries Scale Master® II

This ingenious system rapidly and accurately determines area, perimeter and volume from complex drawings of any scale and in any common units of measure. The information can be instantly transferred into your Windows™ estimating program!

Complex polygons, triangles, rectangles, circles and arcs are easily digitized with a Scale Master® II digital planwheel and the 3-2-1. . .Takeoff! program.

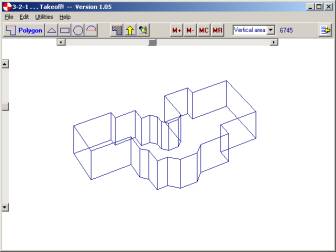

Vertical dimensions, e.g., wall height, slab thickness, or excavation depth can be assigned to each object. Three-D quantities such as wall area and volume are instantly computed and a 3D wireframe model is displayed on the screen. The 3D figure can be spun about two perpendicular axes for viewing from any angle.

This system combines the accuracy and speed of the Scale Master® II with the sophistication and ease-of-use that is common to all Ziatek® digitizing software.
No typing – quantities are easily transferred to Excel™ or any other Windows™ program!
Memory keys simplify accumulation of totals.
Graphics can be saved in a DXF file for export to CAD.
User-selectable color and fill style allows customization of graphic images.
Image can be pasted into estimate for a graphic audit trail of takeoff!

This innovative system can save hours of takeoff time per estimate. It is priced at under $400, compared to traditional takeoff systems that sell for thousands of dollars!

Ziatek® 3-2-1 . . . Takeoff software - $ 295.00
Includes interface cable and manual

Scale Master® II digital planwheel - $ 99.95

SM2 PC Interface Software
Send dimensions from Scale Master II to PC spreadsheet
or Estimating programs. Price Each: $79.95

Includes interface cable, 9-pin connector, 3.5" disk, quick reference,
installation and operation guide.

Ziatek Crystal
2D Digitizing Software, first use.
Price Each: $695.00

.Simple - Elegant - Powerful - Fast!

Product Description
Crystal is a program that will interface a digitizer with Esti-Mate and provide a graphic image of the object being digitized, computes areas, lengths, perimeters and counts corrected for the scale and units of measure selected by the user. Dimensions can be input directly to Esti-Mate program screen fields, with the digitizers input device (stylus or cursor) used in combination with the menu pad. The menu pad is also used to navigate through program screens and fields replacing the computer keyboard for the execution of program commands. Crystal provides a visual audit trail of dimensions that are digitized and the menu pad allows end user to switch between Crystal and Esti-Mate program screens.

Click here to download a free Ziatek Builders Calculator

GTCO 30x36 Roll-Up II Digitizer
Needed for use with Ziatek Crystal Software. Durable and Dependable, built with advanced materials, including a tough Lexan work surface, the Roll-Up will lay flat, and maintain a smooth work surface. The Roll-Up II is designed for professionals who demand the highest level of digitizing accuracy, reliability and convenience. The Roll-Up doesn't require dedicated office space and can be rolled up for storage when not in use, or transported in its handy travel case for occasional use outside the office. It's backed by a five year U.S. warranty.

Price Each: $2,095.00

GTCO QuickRuler Workstation
Quick Ruler is an exciting new tool that quickly and accurately automates blueprint takeoff and drawing measurement processes. QuickRuler includes everything you need: A GTCO 30x36 Roll-Up digitizer, pointing device, measuring menu and LCD display with a sophisticated, yet easy to use built-in measuring program. To measure an area, simply select AREA from the menu then touch points along the perimeter of the area with the pointing device. The resulting measurement will appear on the LCD display. Use the menu pad to navigate through program screens and transfer dimensions directly to Esti-Mate program screen fields.

30 x 36 - Price Each: $2,395.00
